Final calibration and testing

Jumper settings

As seen in the figure below, there are 8 places to place jumpers:

Jumper Technical Connection When to Use It
J1 SET on APC220 → D8 (Usually left open)
J2 RXD on APC220 → TX (D1) When using the radio to send data
J3 TXD on APC220 → RX (D0) When using the radio to receive data
J4 RXI on Openlogger → TX (D1) When logging data to MicroSD
J5 TXO on Openlogger → RX (D0) When logging data to MicroSD
J6 EN on APC220 → D7 When you want to enable the radio via code
J7 VCC3.3 on GY sensor → 3.3V Supply the IMU with 3.3V
J8 VCC5.0 on GY sensor → 5V Supply the IMU with 5V

A guideline for the jumper settings

  • Leave J2 and J3 open when programming the Arduino via USB.
  • Use J2 and J3 to transmit data through the radio.
  • Use J4 and J5 to enable MicroSD logging (if a card is inserted).
  • Use J6 to control the radio module's enable pin via D7.
  • Use J7 to supply the IMU with 3.3V.
  • Use J8 to supply the IMU with 5V (leave open if 3.3V is used).

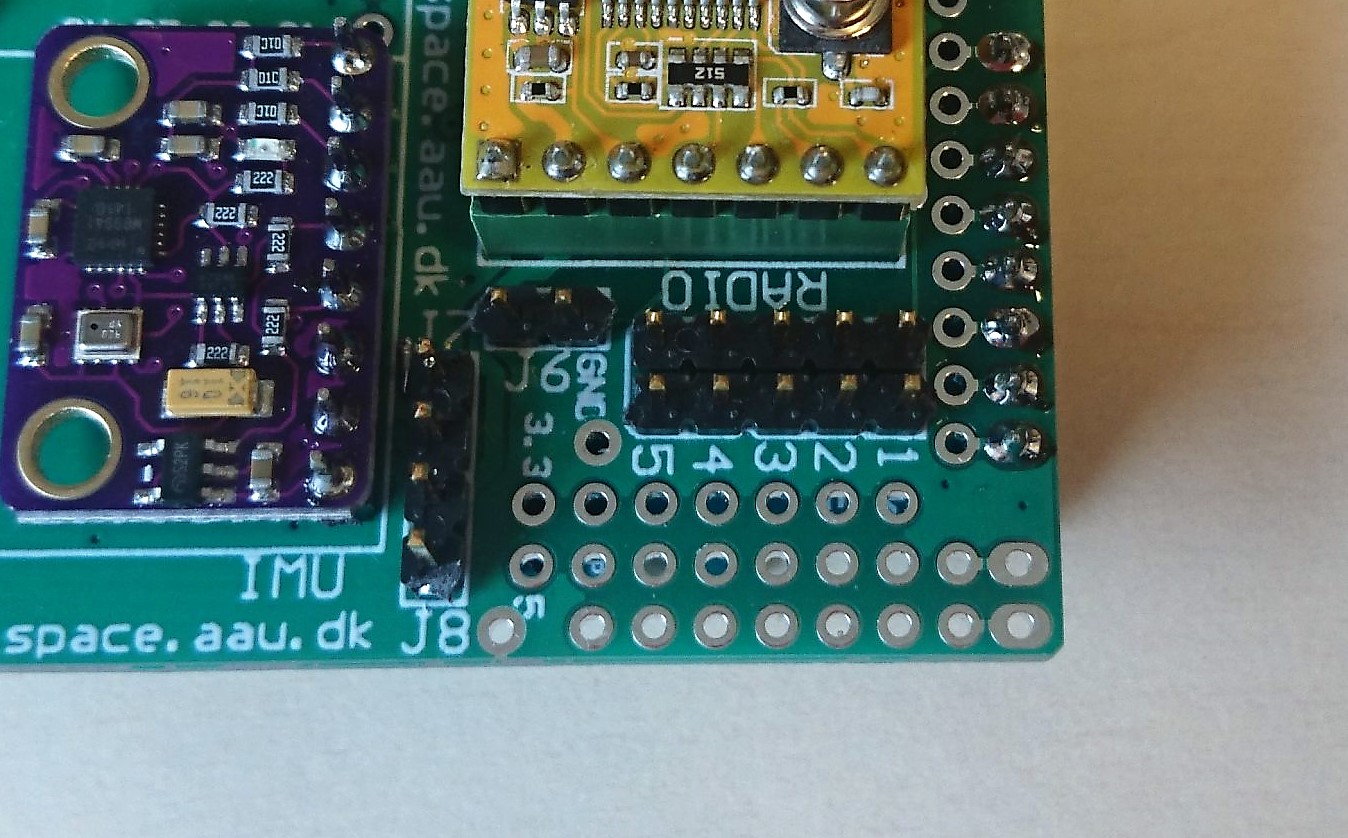

Pins for jumpers on the sensor shield
